Samtrans North Base Emergency Generator Replacement Samtrans | South San Francisco, CA

Project Summary

Samtrans North Base Emergency Generator Replacement

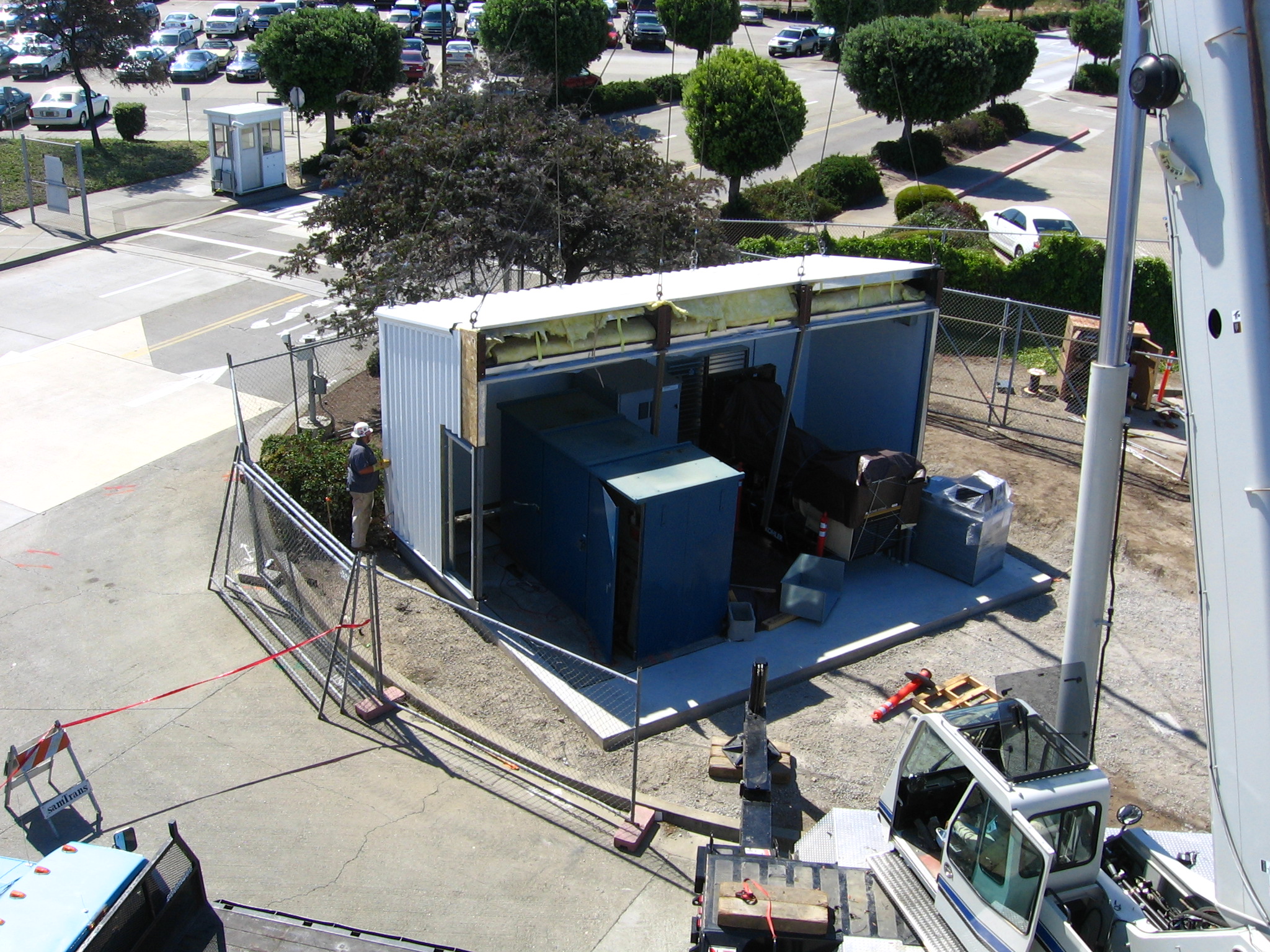

Generator and transfer switch installation within new modular enclosure

Owner: Samtrans
Location: South San Francisco, CA
Design Team: Samtrans
Contract Value: $675,000
Completion Date: April 2010
Duration: 6 months
Related Information
Core Market
Services

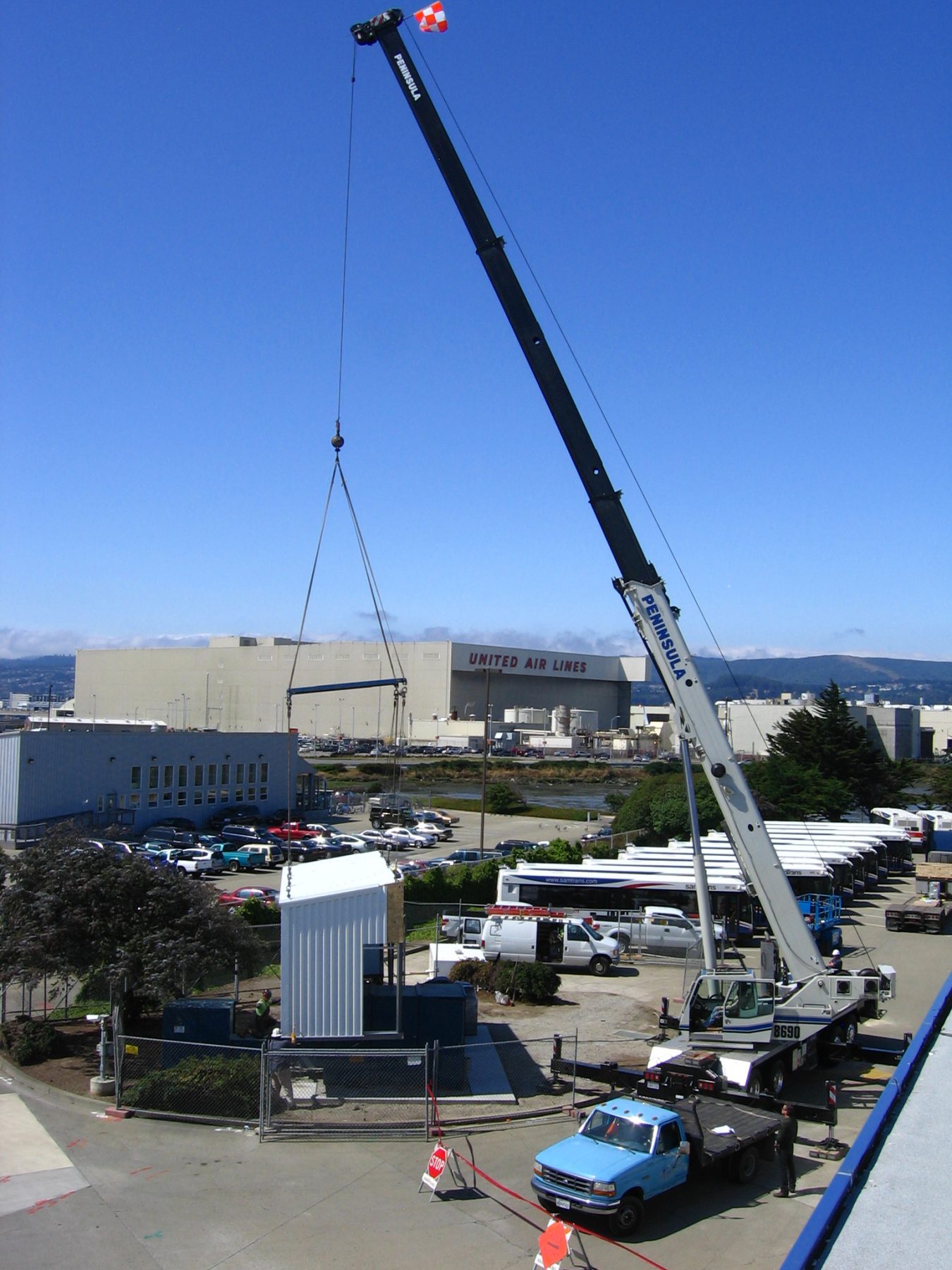

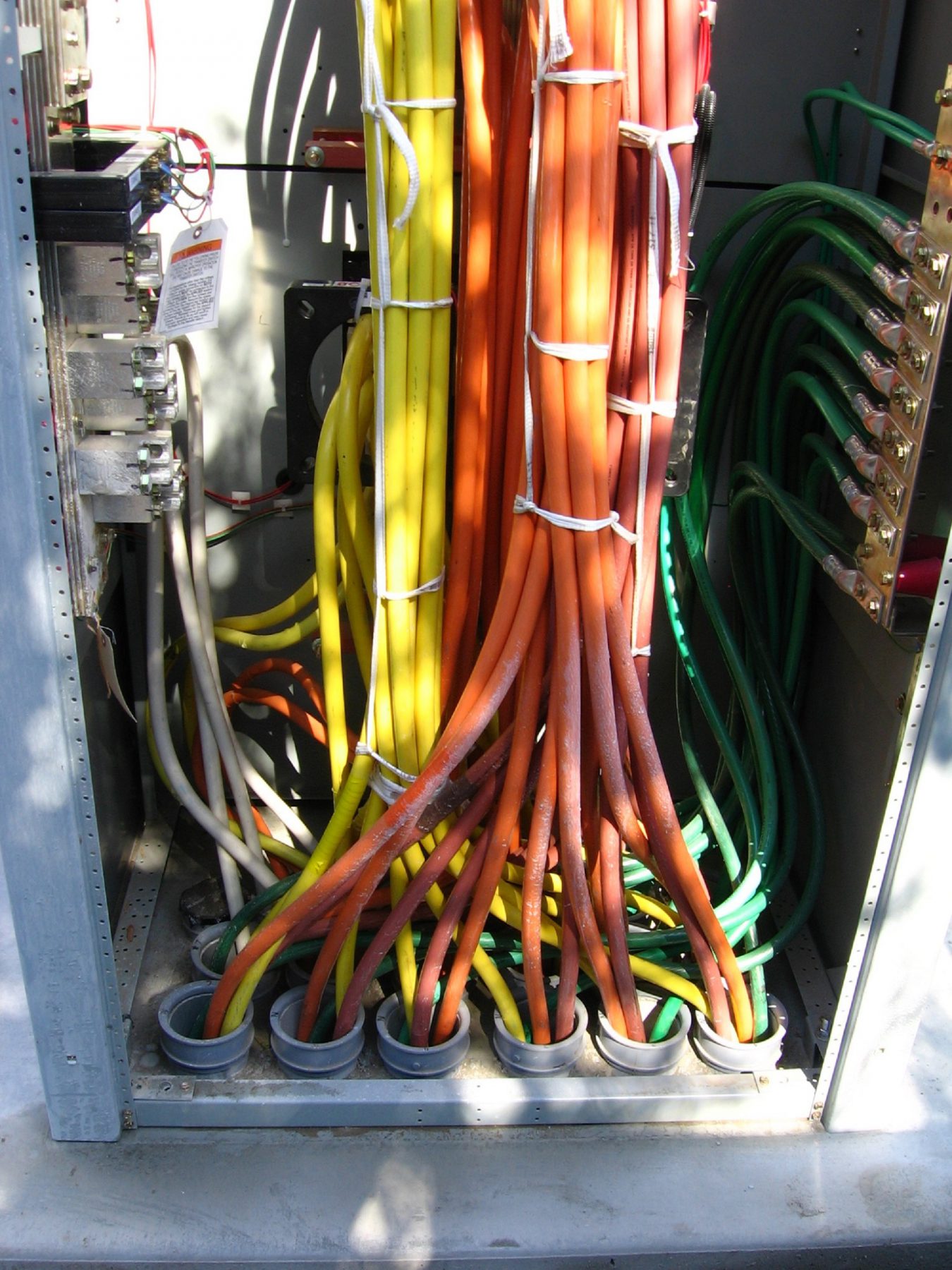

Atlas / Pellizzari Electric was hired by Samtrans to replace an older generator with a new 600KVA unit, including a 1,600 amp automatic transfer switch, new building enclosure, remote fuel tank, and tie-in to the existing electrical service at the Samtrans North Base Facility.  This original design included a bus duct system but certain constraints and value engineering allowed us to install quadruple parallel feeders connected into the switchgear bussing from the transfer switch.  This made for a challenging shutdown that lasted several hours but worked out well.

Photo Gallery  (5)
